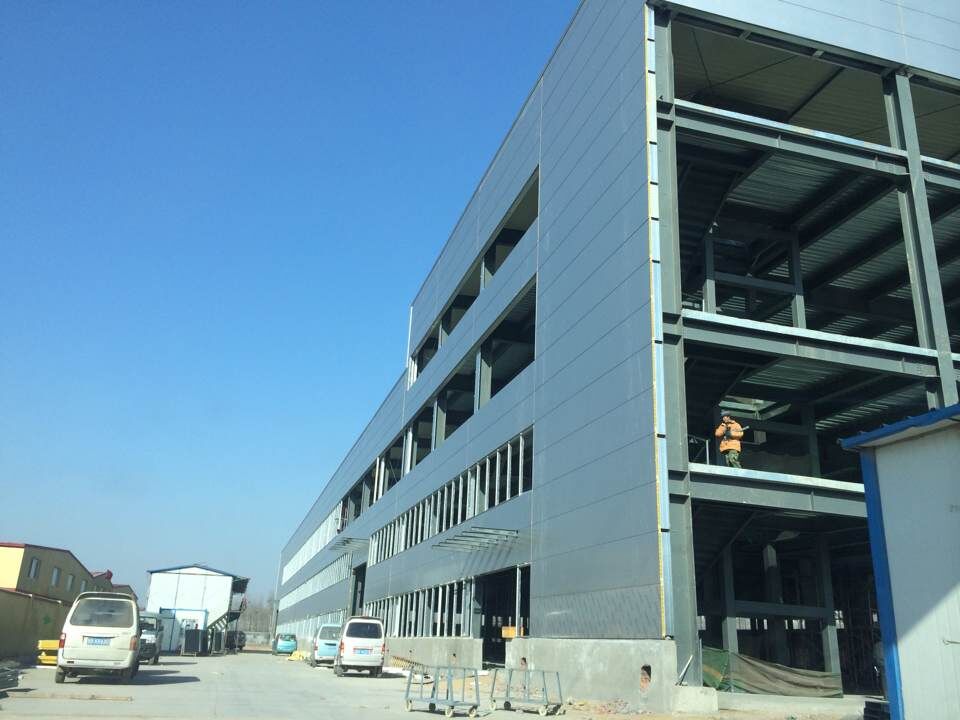

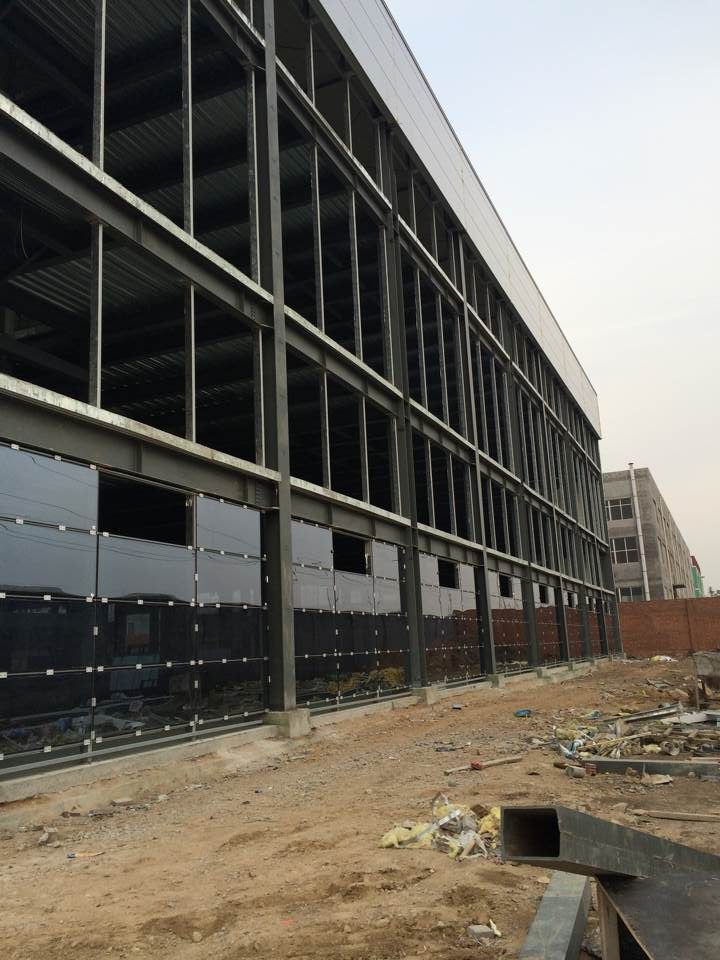

Project name:Prefabricated Structural Steel Workshop For Windows And Doors Production

Location:Qingdao

Project time:the year of 2015

I. Description:

Light steel structure workshop is a new type of building structure system, which is formed by the main steel framework linking up H section, Z section and U section steel components, roof and walls using a variety of panels and other components such as windows, doors, cranes, etc.

II. Materials:
The main frame (columns and beams)is made of welded H-style steel.
The columns are connected to the foundation by pre-embeddding anchor bolt.
The beams and columns, beams and beams are connected with high intensity bolts.
The wall and roof are made of color steel board or color steel sandwich panels, which are connected with the purlin by self-tapping nails.
Doors and windows can be designed at anywhere which can be made into normal type, sliding type or roll up type with material of PVC, metal, alloy aluminum, sandwich panel and others.

III.Features and services:
1,Attractive design ----beautiful and elegant looks, use the color steel sandwich panel, the material is polystyrene foam。
2,Easy to assemble and dismantle -----can be rebuilt for dozens of time with plugs and screw。
3,Firm structure----steel frame structure and sandwich panels
4,Durable----the steel frame parts are all processed with anti-corrosion coating and can be used for as long as 30 years.
5,Reduce cost by integrating &manufacturing &service processes.
6,With reliable quality and efficient service offer one-stop service from developing, design, manufacturing to installation
