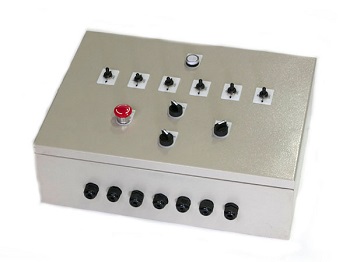

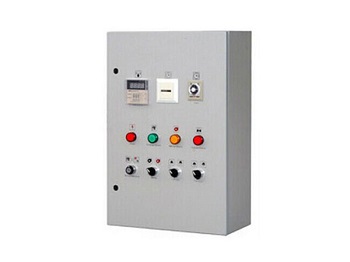

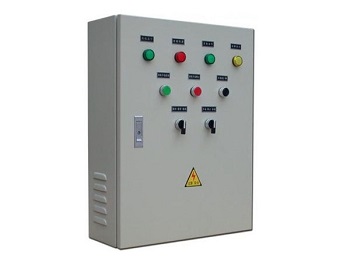

Control box

Availability:

Quantity:


Inquire

Product Description

FeaturesControl temperature. Humidity. Ventilation.heating.feeding.drinking.alarm.light and others automatically
Help users adjust the shed environment, control raising conditions, monitor growing status, analyze breed paremeter, improve raising quality, promote management lever.
Detect inside static pressure and outside temperature automatically. Adjust static pressure difference inside and outside the shed by control air inlet open angle.
Control exhaust fan, variable speed fan, accoring to the shed temperature, humidity and ammonia gas.
Control cooling pad system.according to time temperature and numidity.
Detect water supply and send an alarm when water is lacking.excess, overspeed or cut off.
With the function of password protection.emergency control and powder off alarm.
Three-stage Temperature&One-stage time control
Power voltage: 3 phase 4 wires
Rated voltage: AC 380/220V +- 10%
Working condition: temperature at 0-60 C. relative humidity(RH)≤85% Non-corrosive air.
Temperature contraol: 0-50 C.
Time control: working time(0.1 second to 990 hours);off time(0.1second to 990hours).
Feature: simple operation.all 4-stages have separate control button as Auto-Off-Manual.Stage-1.2.3 are temperature control.Stage-4 is time control. Stage-1.2.3 could set different temperature.when inner temperature below the minimum setting index.three groups of fans under stage -1,2,3 will not work.No.4 group will start on or stop by stage-4 time control.When inner temperature increased.three groups of fans will running per as termperature setting.meanwhile NO.4 group fans will stop.Accurately achieve cooling function under high temperature.and ventilation function under low temperature.
Environmental control system for poultry farming
1) Climate controllers reliable,user friendly micro controllers especially designed for broiler house.
2) Has built 8 in relays for alarm output,heater,5 groups of fan,cooling equipment
3) LCD screen makes the computer and user communicate easily.User could input data to
program the micro computer
4) Available to control heating,ventilation,cooling,air inlet
1) Climate controllers reliable,user friendly micro controllers especially designed for broiler house.
2) Has built 10 in relays for alarm output,heater,5 groups of fan,cooling equipment,air inlet, and
one group of frequency fan.
3) LCD screen,user could input data to program the micro computer.
