Name of Building: Two-storey Chicken Shed

Area: 1275㎡

Project Site: Angola

Details:

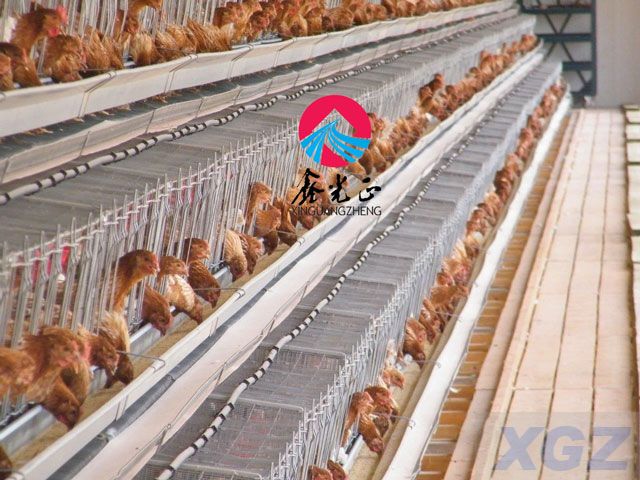

It is Layer House (two floors), two lines of supporting posts made by steel tubes are formed as ground supporting floor system; 4 rows of chicken cages are set on the first floor. This chicken house is the personal project of President of Angola.

1. Size of House：85m*15m (Length*Width)

2. Net height：2m (height of ground floor)+3.5m (height of first floor)

3. Design load of First Floor: 60kg/ sqm

4. Roof Materials: Sandwich Panel, Thickness=50mm

5. Wall Materials: Covered by Curtain

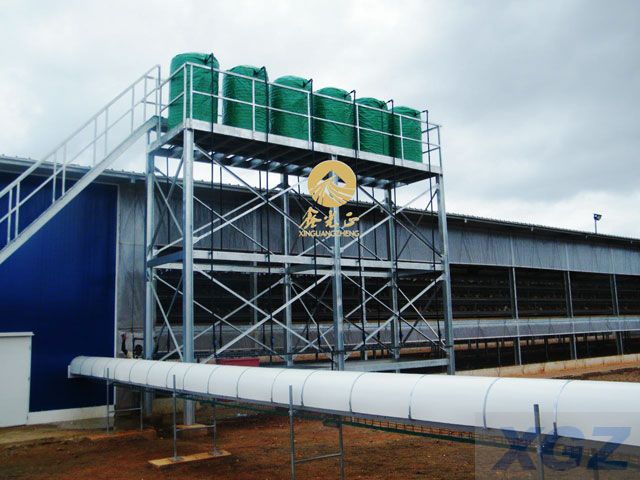

6. Equipped with Steel Staircase and Supporting Bracket of Water Tower. Height of Water Tower is 6m; 4 buckets are on top of tower, whose capacity is 10 CBM

7. Corridors are set along the direction of width and covered steel checkered plate. Size of corridor on the first floor: 15*4m and 15*2m

8. Walkway between cages: Wood Walkway

9. Fitted with Auto-feeding and egg collection equipments
