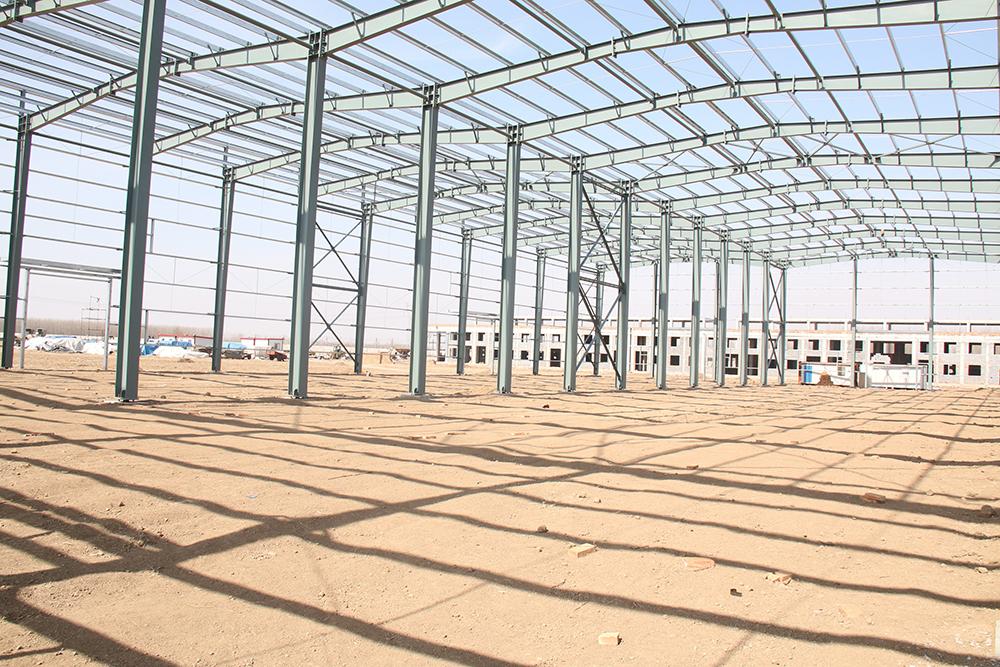

Light Steel Structure Warehouse
Qingdao Xinguangzheng Steel Sturcture Co., Ltd is a large steel structure materials manufacturer can supply high quality and low cost Prefabricated Steel Buildings With CE certification.
Description of steel structure warehouse:
|
Product Name
|
High quality Low Cost Prefabricated Steel Structure Buildings
|
|
Material
|
Metal Steel,H beam,I beam,sandwich panel,windows,doors etc.
|
|
Color
|
As customer’s requirement
|
|
Standard
|
DIN GB ISO ANSI
|
|
Grade
|
Q235(S235JR,A36),Q345(S355JR,Gr50)
|
|
Span life
|
Usually 25-100 years,according to the buliding usage
|
|
Surface Treatment
|
First Shot blasting 2.5a,then painting or Hot dipped galvanized
|
|
Used
|
Low Cost Prefabricated Steel Structure Buildings are use for workshop,plant,warehouse,storage,apartment,hanga
r,residential house ,horse stable,bridge,agriculture building,commercial building etc.
|
Specifications of steel structure warehouse:
1. Opinions |
1)We can supply steel structure warehouse for workshop,storage,hangar,hotel,apartment,shopping mall,container house, poultry house, modular house, garage, bridge crane, various steel structure materials etc. |
| 2)We can also make and develop new parts according to customers’ drawings and detailed dimensions. |
2.Specifications
|
1) Size of Low Cost Prefabricated Steel Structure Buildings (m):
Width * Length * Eave Height;
|
2)Type of Low Cost Prefabricated Steel Structure warehouse
:
Single slope, double slope, Multi-slope;
Single span, double-span, Multi-span;
Single floor, double floors,Multi-floors; |
| 3) Base: steel foundation bolts |
4) Steel fream for Low Cost Prefabricated Steel Structure warehouse:
Material Q345(S355JR)(Gr50)or Q235(S235JR) steel;
All bolts connection;
Straight cross-section or Variable cross-section; |
5) Bracing: X-type or V-type or other type bracing made from angle, round bar, etc ; |
6) Wall & Roof C/Z Purlin: Size from C80~C300; Z100~Z300; |
7) Roof and wall panel:
Single color corrugated steel sheet 0.326~0.7mm thick;
Sandwich panel with EPS, ROCK WOOL, PU etc insulation, thickness around 50mm~200mm; |
| 8)Window:UPVC or Aluminum Alloy. |
| 9)Door:Sliding or Roller shutter door. |
| 10) Gutter material:Color steel sheet or galvanized steel or stainless steel; |
| 11)Rainspout: PVC pipe |
| 12)Accessories: Skylight panel, Ventilation, Fasteners etc |
| 13)Surface process: Shot blasting Sa2.5;Two lays of Anti-rust Painting! |
| 14) Packing: Main steel frame without packing load in 40’ OT, roof and wall panel load in 40’ HQ! |
The advantage of the steel structure buildings：
1, the steel structure bearing capacity of light weight and high: belongs to the lightweight high strength material
2, steel is the most close to homogeneous isotropic body: the steel cut into small pieces Every small pieces will have roughly the same mechanical properties And performance is also roughly the same in every direction Is the foundation of solid mechanics
3, good plasticity and toughness of steel: under static load steel have good plastic deformation capability
4, steel has good welding performance: the so-called "good" refers to steel welding performance after the welding process and welding can preserve the integrity of the welding part is not cracking properties
5, steel structure has the characteristics of no leakage, no matter adopt welding, riveting or bolt connection of steel structure can be sealed and no leakage
6, factory, construction steel structure manufacture assembly: component is lighter Construction is convenient The site covers an area of small short construction period Also facilitate the demolition of reinforcement and reconstruction
7, poor corrosion resistance of steel, steel in high humidity, corrosion medium environment Easy to rust section diminishing Affect the service life of damaged the structure Thus the steel structure need regular maintenance
