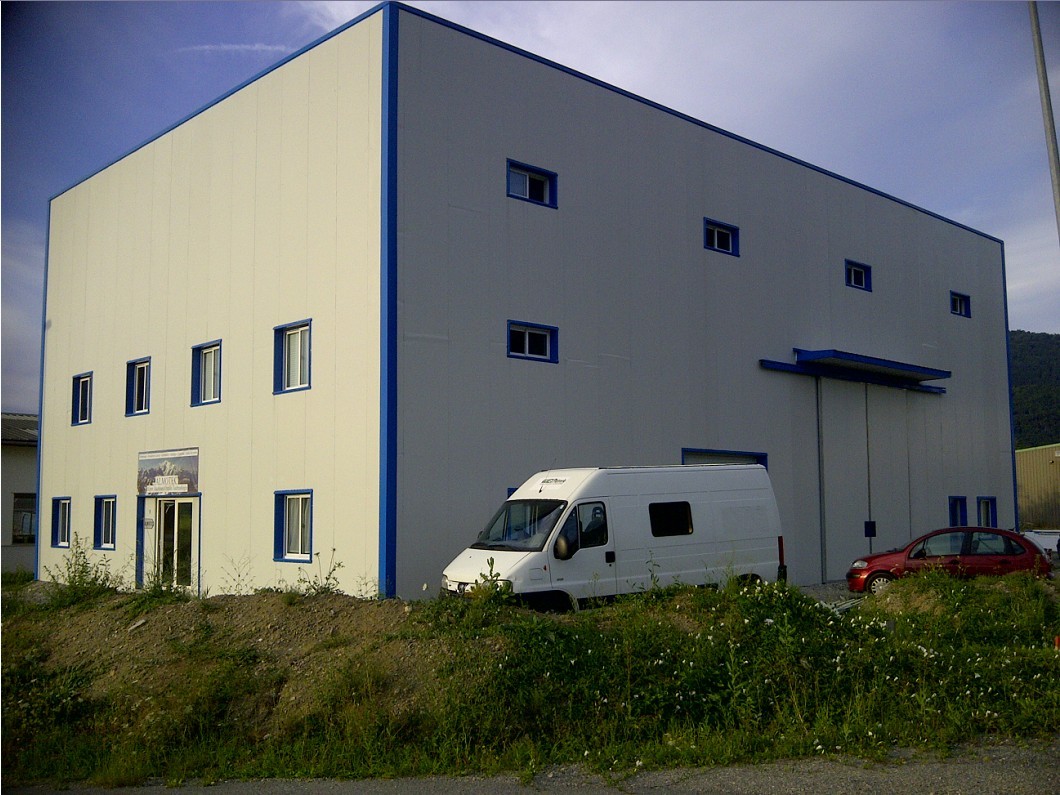

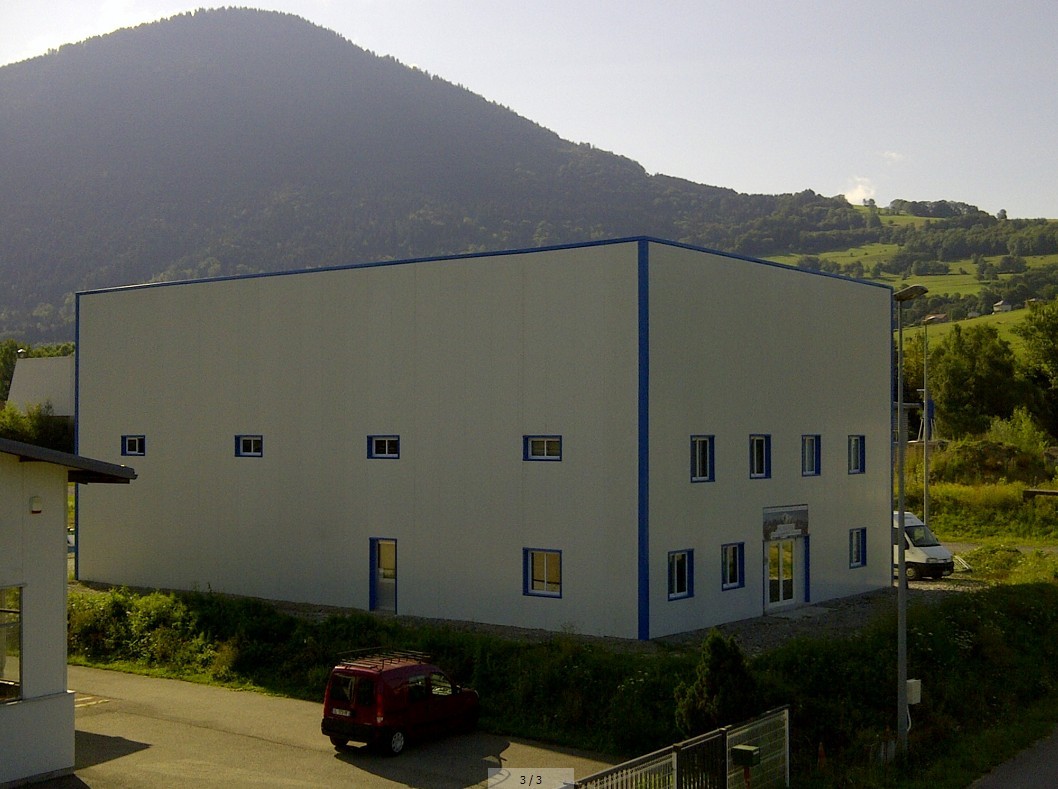

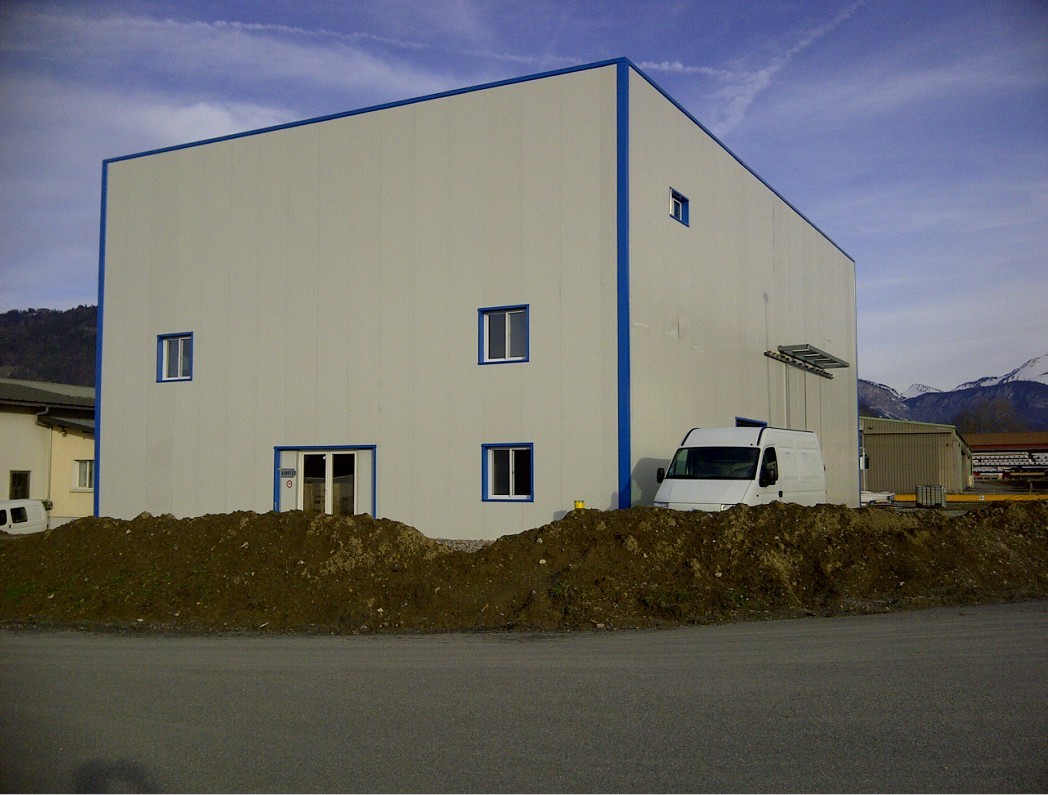

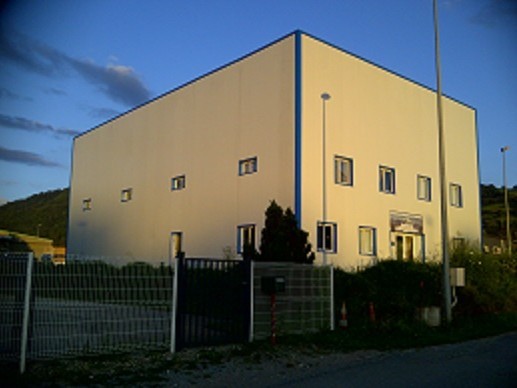

Prefab Steel Structure Warehouse For France
Steel Structure Warehouse is the third generation construction. It adopts H type steel , C type steel and Z type steel to combine or build framework. Roof and wall are color compressing corrugated steel or color steel sandwich panel. Steel structure has basically substituted traditional reinforced concrete in developed country. It has many excellent characteristics like light weight, big span, fewer materials, low cost, saving basic, short building cycle, beautiful appearance, etc. It is widely applied to workshop, storage, office block, carpark and family house, etc.
Main Steel Structure frame of the Warehouse
1.Column&Beam:H section steel with Q345B,two times of mid-grey waterproofing paint
2.Purlin:C section steel with Q235,two times of mid-grey paint
Secondary steel structure frame of the warehouse
1.Tie bar: Q235，φ140*4，two times of mid-grey paint
2.Purlin:C section steel with Q235,two times mid-grey paint
3.Bracing: Q235,φ14, two times mid-grey paint
4.Channel steel:10#,18#, two times mid-grey paint
5.Steel Ladder:roof repair ladder
Roof&Wall cladding of the steel warehouse
1.Roof panel:V-960,100mmEPS,corrugated sandwich panels with outside sheet 0.476mm and inside sheet 0.4mm
2.Wall panel:
1）Outside wall panel:V-950,100mmEPS sandwich panel,outside steel sheet 0.476mm,inner sheet 0.4mm
2)Inner wall panel for partition:OSB,2.44m*1.22m
3)Inner wall panel for wall parapet:V-900,prepainted steel sheet 0.476mm
Door&Window for the warehouse
1.Door
1)Aluminium alloy swing door:2.1m*1m,5sets
2)Sliding panel door:75mm sandwich panel,4m*5m,1set
3)Safety door:2.1m*1m,2sets
4)Electric roller door:3m*3m,1set
5)Steel wooden door:0.9m*2m,1set
2.Window
Aluminum alloy sliding window
