Pre engineered Steel Warehouse building

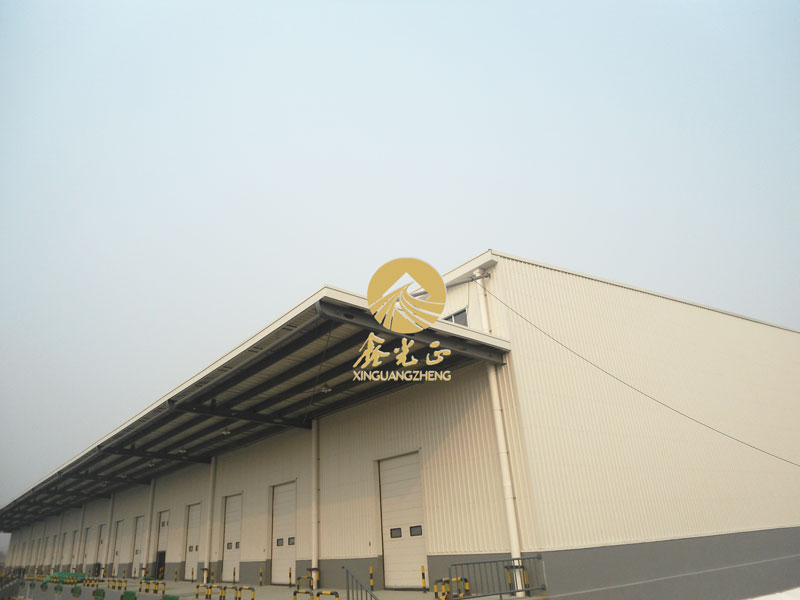

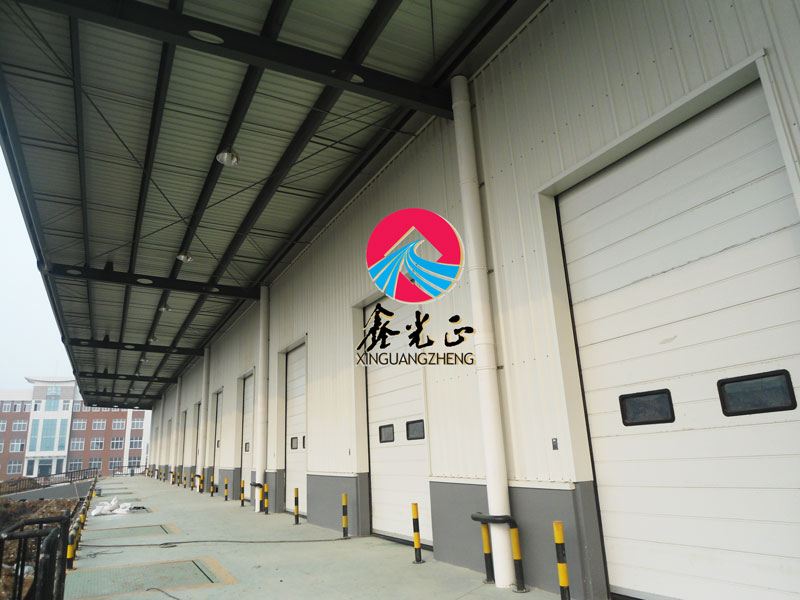

 Where we built this steel warehouse building

Qingdao Puhua Logistics Co.,LTD. totally has two logistics warehouses，the big warehouse with dimension of length 249.18m X width 90.48m X height 11.4 m，total area is 22,545.81 square meters，it’s canopy is 996.72 square meters. The warehouse adopts portal frame，design based on durable years of 50 years，earthquake resistance is 7 grade，fireproof is 2 grade，adopts fireproof paint for fire-resistance. Roof and wall use 75mm thickness heat insulation materials which will be done on site，no power ventalitor on roof and skylight sheet for lighting.
The small warehouse with dimension of length 129.18m X width 72.48m X height 7.3 m，total area is 9,363 square meters. It’s also adopts portal frame，design based on durable years of 50 years，earthquake resistance is 7 grade，fireproof 2 grade，adopts fireproof paint for fire-resistance. Roof and wall use 75mm thickness heat insulation materials which will be done on site，no power ventalitor on roof and skylight sheet for lighting.

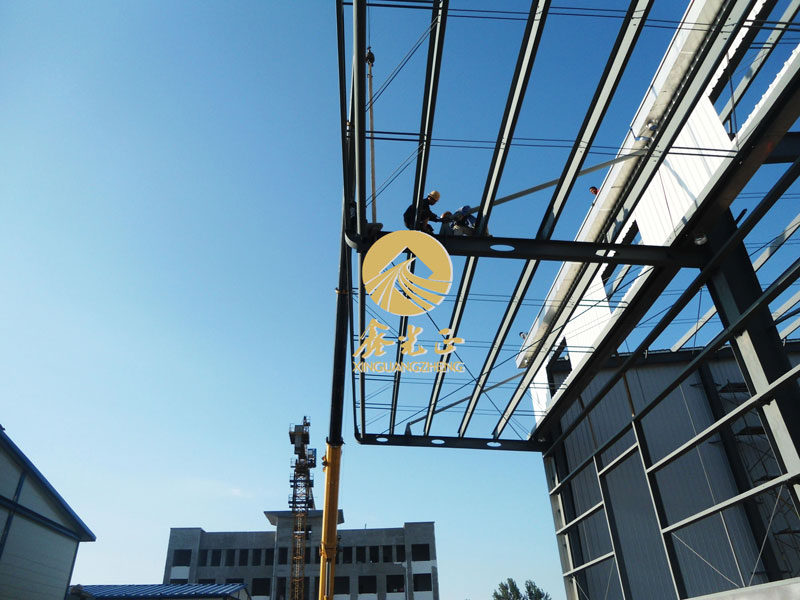

How to control installation of steel warehouse building
1) before installation, the construction unit of product certification, design documents and deal with members assembled records for inspection, record the size of the component and the reinspection do not coincide.Deformation of steel structure, defects exceed the allowable deviation, should be handled.
Before the installation, should prepare a detailed measurement and correction of the process, the welding of thick steel plate shall be installed in the welding process test of simulated product structure before, prepare the corresponding construction technology.Wriggle through the earth to assemble good roof should be preset a certain degree.

(2) steel structure hoisting in place, after dealing with components such as design requirements for control point positioning axis, elevation measurement marking, for lifting the butt joint quality inspection before welding.Temporary support wave and steel cable is installed in order to make the security and stability of steel roof in construction process.

(3) the steel structure installation, the construction unit shall submit each common component after lifting the elevation dimension, welding, painting and so on were submitted to supervision of acceptance.

Famous steel structure buildings in the world

World famous steel structure building such as the Eiffel Tower in Paris, the twin towers in Kuala Lumpur, the Empire State Building in New York, London one thousand dome, the golden gate bridge in San Francisco, Sydney opera house
